Ceratizit
70739416

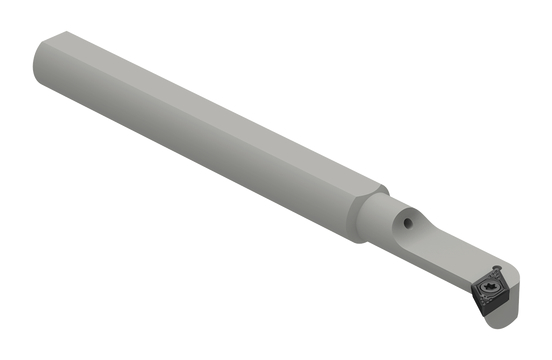

ANTI-VIBRATION BORING BAR
Specifications
| Cutting Direction | LEFT |
|---|---|
| Minimum Bore Diameter (Metric) | 19.5 |
| Minimum Bore Diameter (Inch) | 0.77 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 150 |
| Overall Length (Inch) | 5.91 |
| Short Description | E-A1216M SDUCL 07 |
| Unit Of Measure | Metric |
| Material | Steel |
| Long Description | ANTI-VIBRATION BORING BAR E-A1216M SDUCL 07 |
| Series | MaxiLock-S |
| Shank Height (Metric) | 15 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11 |
| Head Length (Decimal) | 0.32 |
| Head Length (Metric) | 8 |
| Body Diameter Reduced (Decimal) | 0.48 |
| Body Diameter Reduced (Metric) | 12 |
| Connection Type | CYL |
| Orthogonal Rake Angle | 10 degrees |
| Reduced Body Diameter Length (Decimal) | 1.42 |
| Reduced Body Diameter Length (Metric) | 36 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SDUC93 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
