Ceratizit
70746016

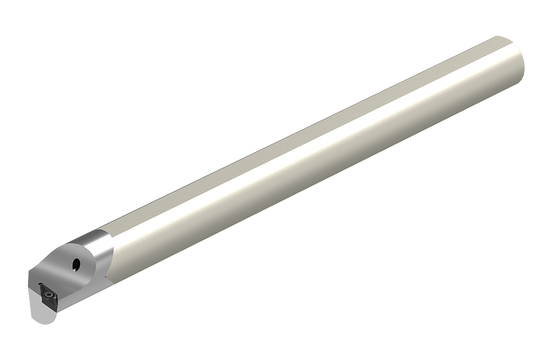

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 200 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVUCR |
| Overall Length (Inch) | 7.88 |
| Short Description | E16R SVUCR 11 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER E16R SVUCR 11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | HM |
| Shank Height | 15.50 mm |
| Orthogonal Rake Angle | 4 degrees |
| Shank Height (Metric) | 15.5 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11 |
| Head Length (Decimal) | 0.44 |
| Head Length (Metric) | 11 |
| Min. Bore Diameter (Decimal) | 0.79 |
| Min. Bore Diameter (Metric) | 20 |
| End Chamfer Angle | 87 degrees |
| End Chamfer Distance (Decimal) | 0.65 |
| End Chamfer Distance (Metric) | 16.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 34 |
| Reduced Body Diameter Length (Decimal) | 1.34 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SVUC93 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.63 |
| Minimum Bore Diameter (Metric) | 20 |
| Item Width (Inches) | 1.18 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 16 |
| Base Material | HM |
| Item Weight (lbs) | 1.104 |
| Item Height (Inches) | 3.07 |
| Item Length (Inches) | 1.18 |
| Rake Angle Orthogonal | 4 |
| Head Length (Inch) | 0.433 |
| Minimum Bore Diameter (Inch) | 0.787 |
| Shank Height (Inch) | 0.61 |
