Ceratizit
70782016

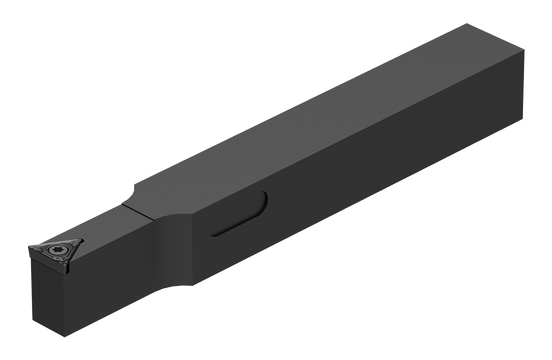

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | STCCN |
| Overall Length (Inch) | 4.93 |
| Short Description | STCCN 1616 K11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER STCCN 1616 K11 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Shank Height | 16 mm |
| Shank Width (Decimal) | 0.63 |
| Shank Width (Metric) | 16 |
| Shank Height (Metric) | 16 |
| Head Length (Decimal) | 0.95 |
| Head Length (Metric) | 24 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16 |
| Functional Height (Decimal) | 0.63 |
| Overall Height (Metric) | 15.8 |
| Overall Height (Decimal) | 0.63 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | STCC90 |
| Cutting Direction | NEUTRAL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.18 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 0.531 |
| Item Height (Inches) | 3.07 |
| Item Length (Inches) | 1.18 |
| Head Length (Inch) | 0.945 |
| Overall Height (Inch) | 0.622 |
| Shank Width (Inch) | 0.63 |
| Shank Height (Inch) | 0.63 |
