Ceratizit
7084321601

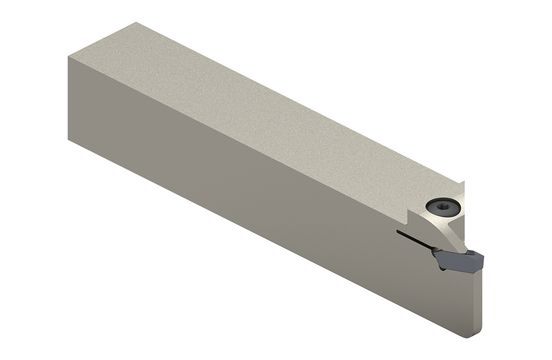

MONO CLAMP EXTERNAL HOLDER GX 16
Specifications
| Long Description | MONO CLAMP EXTERNAL HOLDER GX 16 E16L0013S2-1616K-S-GX16 |
|---|---|
| Short Description | E16L0013S2-1616K-S-GX16 |
| Product Line | CERATIZIT_PERFORMANCE |
| Overall Height (Metric) | 21 |
| Functional Width (Metric) | 15.2 |
| Item Width (Inches) | 0.98 |
| Overall Length (mm) | 12.5 cm |
| Item Weight (lbs) | 0.578 |
| Item Height (Inches) | 0.98 |
| Cutting Width (Inch) | 0.079 |
| Item Length (Inches) | 5.31 |
| Head Length (Inch) | 0.984 |
| Overall Height (Inch) | 0.827 |
| Shank Width (Metric) | 16 |
| Cutting Width (Metric) | 2 |
| Head Length (Metric) | 25 |
| Shank Width (Inch) | 0.63 |
| Shank Height (Metric) | 16 |
| Shank Height (Inch) | 0.63 |
| Cooling | WITHOUT IC |
| Overall Length (Inch) | 4.921 |
