Ceratizit
70904264

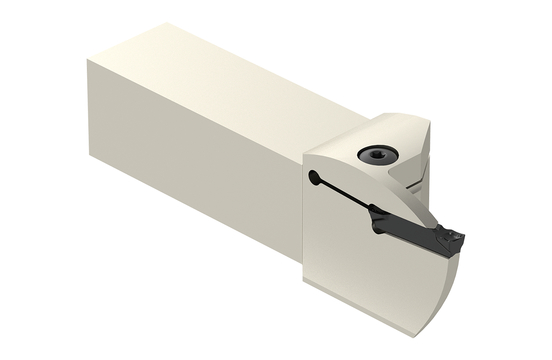

MONO CLAMP AXIAL HOLDER GX 24
Specifications
| Long Description | MONO CLAMP AXIAL HOLDER GX 24 E25L0025-2525X-GX24-4 AS70-100 |
|---|---|
| Short Description | E25L0025-2525X-GX24-4 AS70-100 |
| Product Line | CERATIZIT_PERFORMANCE |
| Overall Height (Metric) | 32 |
| Functional Width (Metric) | 23.2 |
| Item Width (Inches) | 1.93 |
| Overall Length (mm) | 11.5 cm |
| Item Weight (lbs) | 1.232 |
| Item Height (Inches) | 5 |
| Cutting Width (Inch) | 0.236 |
| Item Length (Inches) | 1.93 |
| Head Length (Inch) | 1.772 |
| Overall Height (Inch) | 1.26 |
| Shank Width (Metric) | 25 |
| Cutting Width (Metric) | 6 |
| Head Length (Metric) | 45 |
| Shank Width (Inch) | 0.984 |
| Shank Height (Metric) | 25 |
| Shank Height (Inch) | 0.984 |
| Overall Length (Inch) | 4.528 |
