Ceratizit

7103532414

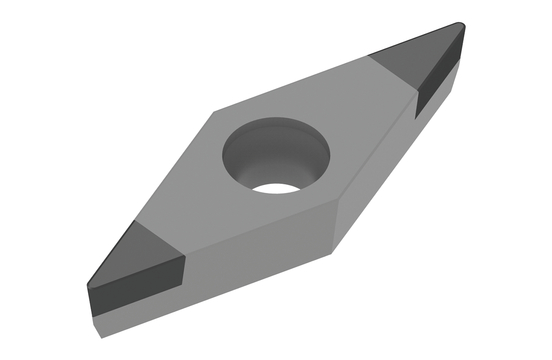

PCBN TURNING INSERT

Specifications

Thickness (Metric)3.18
Corner Radius (Metric)0.8
MaterialPCBN
Included Angle35 degrees
Corner Radius (Inch)0.04
StyleVCGW
Thickness (Inch)0.13
Short DescriptionVCGW 110308SN-011C_B3 CTBH15C
Long DescriptionPCBN TURNING INSERT VCGW 110308SN-011C_B3 CTBH15C
GradeCTBH15C
Unit Of MeasureImperial
Cutting Edge Length0.44 Inch
Inscribed Circle Diameter0.25 Inch
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Metric)11.1
Direction Of HandNeutral
Clearance Angle Major7 degrees
Face Land Width (Metric)0.11
Face Land Width (Decimal)0.01
Screw Hole Diameter (Decimal)0.12
Screw Hole Diameter (Metric)2.9
Cutting Edge Effective Length (Metric)2.5
Cutting Edge Effective Length (Decimal)0.1
Index Count2
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)3.18
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.062
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle35
Insert Thickness (Inch)0.125
