Ceratizit

71108406

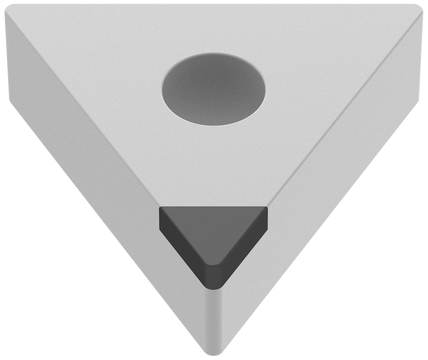

PCBN TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.8
MaterialPCBN
Included Angle60 degrees
Corner Radius (Inch)0.04
StyleTNGA
Thickness (Inch)0.19
Short DescriptionTNGA 160408FN_A3 CTBH20U
Long DescriptionPCBN TURNING INSERT TNGA 160408FN_A3 CTBH20U
GradeCTBH20U
Unit Of MeasureMetric
Cutting Edge Length16.50 mm
Inscribed Circle Diameter9.52 mm
Inscribed Circle Diameter (Decimal)0.38
Inscribed Circle Diameter (Metric)9.52
Cutting Edge Length (Decimal)0.65
Cutting Edge Length (Metric)16.5
Direction Of HandNeutral
Screw Hole Diameter (Decimal)0.15
Screw Hole Diameter (Metric)3.81
Cutting Edge Effective Length (Metric)3
Cutting Edge Effective Length (Decimal)0.12
Index Count1
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.139
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle60
Insert Thickness (Inch)0.187
