Ceratizit

71120500

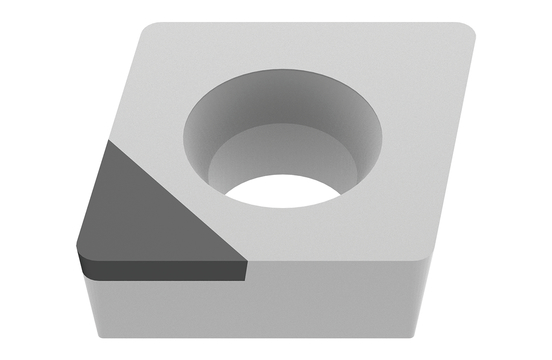

PCBN TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.2
MaterialPCBN
Included Angle80 degrees
Corner Radius (Inch)0.01
StyleCCGW
Thickness (Inch)0.1
Short DescriptionCCGW 060202TN-012D_A3 CTBH20U
Long DescriptionPCBN TURNING INSERT CCGW 060202TN-012D_A3 CTBH20U
GradeCTBH20U
Unit Of MeasureMetric
Cutting Edge Length6.40 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.26
Cutting Edge Length (Metric)6.4
Direction Of HandNeutral
Clearance Angle Major7 degrees
Face Land Width (Metric)0.12
Face Land Width (Decimal)0.01
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Cutting Edge Effective Length (Metric)3.4
Cutting Edge Effective Length (Decimal)0.14
Index Count1
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.033
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.094
