Ceratizit
7112720101

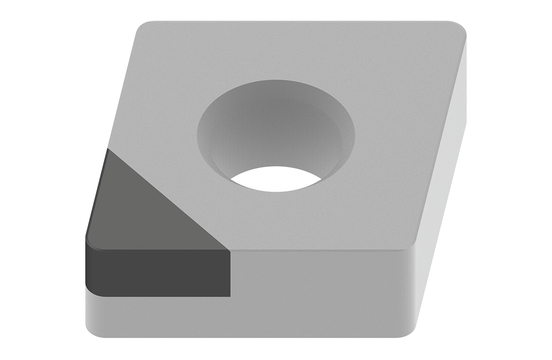

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCD |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | CNGA |
| Thickness (Inch) | 0.19 |
| Short Description | CNGA 120408FN_A6 CTDPS30 |
| Long Description | PCD TURNING INSERT CNGA 120408FN_A6 CTDPS30 |
| Grade | CTDPS30 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.51 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 12.9 |
| Direction Of Hand | Neutral |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.13 |
| Cutting Edge Effective Length (Metric) | 6 |
| Cutting Edge Effective Length (Decimal) | 0.24 |
| Index Count | 1 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Item Weight (lbs) | 0.268 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 80 |
| Insert Thickness (Inch) | 0.187 |
