Ceratizit

71130804

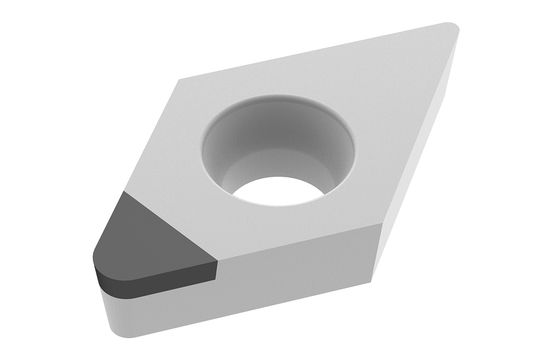

PCBN TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.8
MaterialPCBN
Included Angle55 degrees
Corner Radius (Inch)0.04
StyleDCGW
Thickness (Inch)0.1
Short DescriptionDCGW 070208FN_A3 CTBH40U
Long DescriptionPCBN TURNING INSERT DCGW 070208FN_A3 CTBH40U
GradeCTBH40U
Unit Of MeasureMetric
Cutting Edge Length7.75 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.31
Cutting Edge Length (Metric)7.75
Direction Of HandNeutral
Clearance Angle Major7 degrees
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Cutting Edge Effective Length (Metric)3
Cutting Edge Effective Length (Decimal)0.12
Index Count1
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.093
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle55
Insert Thickness (Inch)0.094
