Ceratizit

71140906

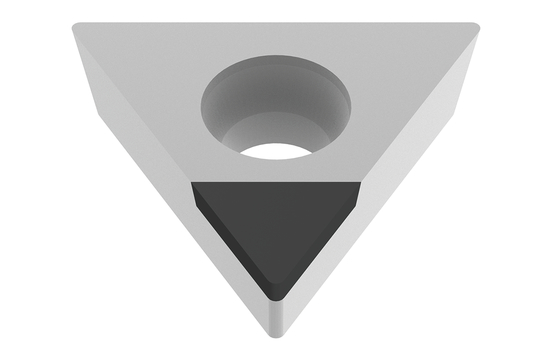

PCBN TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.2
MaterialPCBN
Included Angle60 degrees
Corner Radius (Inch)0.01
StyleTCGW
Thickness (Inch)0.1
Short DescriptionTCGW 110202TN-012E_A4 CTBH40U
Long DescriptionPCBN TURNING INSERT TCGW 110202TN-012E_A4 CTBH40U
GradeCTBH40U
Unit Of MeasureMetric
Cutting Edge Length11 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.44
Cutting Edge Length (Metric)11
Direction Of HandNeutral
Clearance Angle Major7 degrees
Face Land Width (Metric)0.12
Face Land Width (Decimal)0.01
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Cutting Edge Effective Length (Metric)3.8
Cutting Edge Effective Length (Decimal)0.15
Index Count1
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.139
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle60
Insert Thickness (Inch)0.094
