Ceratizit

71161343

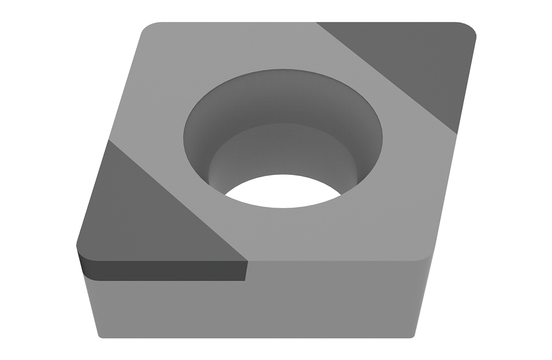

PCBN TURNING INSERT

Specifications

Thickness (Metric)3.97
Corner Radius (Metric)0.2
MaterialPCBN
Included Angle80 degrees
Corner Radius (Inch)0.01
StyleCCGW
Thickness (Inch)0.16
Short DescriptionCCGW 09T302TN-011E_B3 CTBH40C
Long DescriptionPCBN TURNING INSERT CCGW 09T302TN-011E_B3 CTBH40C
GradeCTBH40C
Unit Of MeasureMetric
Cutting Edge Length9.70 mm
Inscribed Circle Diameter9.52 mm
Inscribed Circle Diameter (Decimal)0.38
Inscribed Circle Diameter (Metric)9.52
Cutting Edge Length (Decimal)0.39
Cutting Edge Length (Metric)9.7
Direction Of HandNeutral
Clearance Angle Major7 degrees
Face Land Width (Metric)0.11
Face Land Width (Decimal)0.01
Screw Hole Diameter (Decimal)0.18
Screw Hole Diameter (Metric)4.4
Cutting Edge Effective Length (Metric)3.4
Cutting Edge Effective Length (Decimal)0.14
Index Count2
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)3.97
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.11
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.156
