Ceratizit

71163140

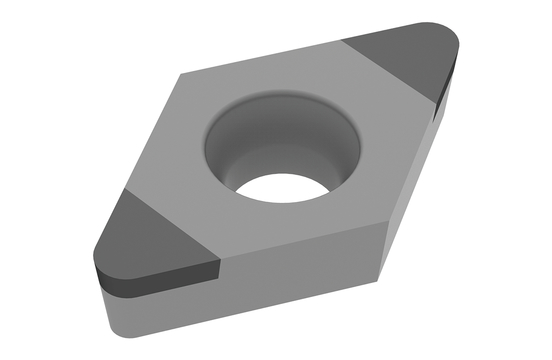

PCBN TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.2
MaterialPCBN
Included Angle55 degrees
Corner Radius (Inch)0.01
StyleDCGW
Thickness (Inch)0.1
Short DescriptionDCGW 070202TN-015D_B4 CTBS20C
Long DescriptionPCBN TURNING INSERT DCGW 070202TN-015D_B4 CTBS20C
GradeCTBS20C
Unit Of MeasureMetric
Cutting Edge Length7.75 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.31
Cutting Edge Length (Metric)7.75
Direction Of HandNeutral
Clearance Angle Major7 degrees
Face Land Width (Metric)0.15
Face Land Width (Decimal)0.01
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Cutting Edge Effective Length (Metric)3.9
Cutting Edge Effective Length (Decimal)0.16
Index Count2
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.146
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle55
Insert Thickness (Inch)0.094
