Ceratizit
71163243

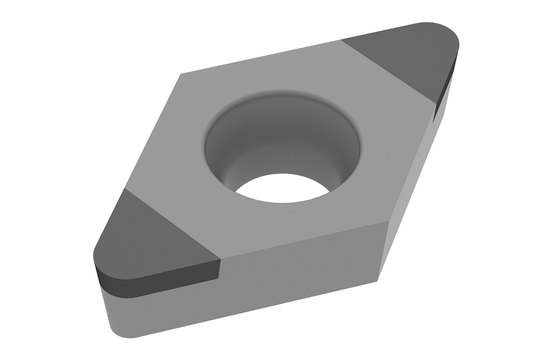

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Material | PCBN |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | DCGW |
| Thickness (Inch) | 0.16 |
| Short Description | DCGW 11T302SN-011C_B4 CTBH20C |
| Long Description | PCBN TURNING INSERT DCGW 11T302SN-011C_B4 CTBH20C |
| Grade | CTBH20C |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.60 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Decimal) | 0.46 |
| Cutting Edge Length (Metric) | 11.6 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.11 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 3.9 |
| Cutting Edge Effective Length (Decimal) | 0.16 |
| Index Count | 2 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 3.97 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Item Weight (lbs) | 0.223 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 55 |
| Insert Thickness (Inch) | 0.156 |
