Ceratizit
7117140201

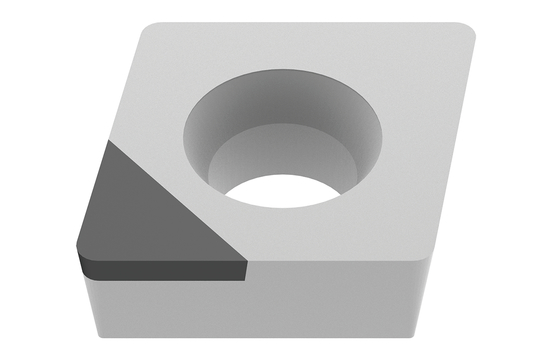

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Material | PCD |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | CCGW |
| Thickness (Inch) | 0.16 |
| Short Description | CCGW 09T302FN_A2 CTDCD10 |
| Long Description | PCD TURNING INSERT CCGW 09T302FN_A2 CTDCD10 |
| Grade | CTDCD10 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.39 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 9.7 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 2.4 |
| Cutting Edge Effective Length (Decimal) | 0.1 |
| Index Count | 1 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 3.97 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Item Weight (lbs) | 0.094 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 80 |
| Insert Thickness (Inch) | 0.156 |
