Ceratizit

71306204

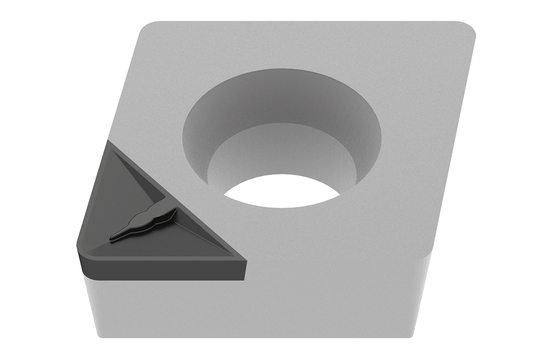

PCD TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.4
MaterialPCD
Included Angle80 degrees
Corner Radius (Inch)0.02
StyleCCGT
Thickness (Inch)0.1
Short DescriptionCCGT 060204FN_A3-Q-CB2 CTDPS30
Long DescriptionPCD TURNING INSERT CCGT 060204FN_A3-Q-CB2 CTDPS30
GradeCTDPS30
Unit Of MeasureMetric
Cutting Edge Length6.40 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.26
Cutting Edge Length (Metric)6.4
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-Q-CB2
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Cutting Edge Effective Length (Metric)3.1
Cutting Edge Effective Length (Decimal)0.13
Index Count1
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.05
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.094
