Ceratizit
71405152

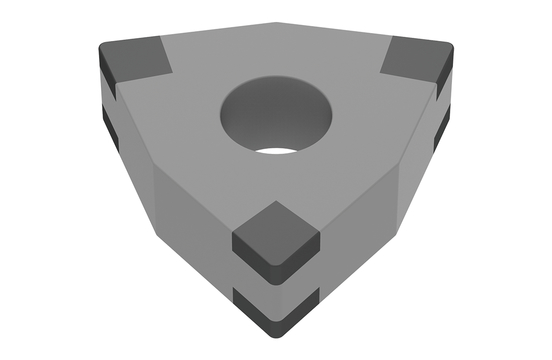

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCBN |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | WNGA |
| Thickness (Inch) | 0.19 |
| Short Description | WNGA 080404SN-009D_M3 CTBS20C |
| Long Description | PCBN TURNING INSERT WNGA 080404SN-009D_M3 CTBS20C |
| Grade | CTBS20C |
| Unit Of Measure | Metric |
| Cutting Edge Length | 8.50 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Decimal) | 0.34 |
| Cutting Edge Length (Metric) | 8.5 |
| Direction Of Hand | Neutral |
| Face Land Width (Metric) | 0.09 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.13 |
| Cutting Edge Effective Length (Metric) | 2.8 |
| Cutting Edge Effective Length (Decimal) | 0.11 |
| Index Count | 6 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Item Weight (lbs) | 0.284 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 80 |
| Insert Thickness (Inch) | 0.187 |
