Ceratizit
7141040600

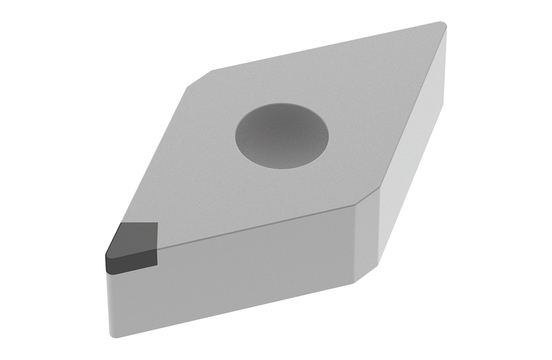

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCBN |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DNGA |
| Thickness (Inch) | 0.25 |
| Short Description | DNGA 150608FN_A3 CTBH20U |
| Long Description | PCBN TURNING INSERT DNGA 150608FN_A3 CTBH20U |
| Grade | CTBH20U |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.61 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 15.5 |
| Direction Of Hand | Neutral |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Cutting Edge Effective Length (Metric) | 3 |
| Cutting Edge Effective Length (Decimal) | 0.12 |
| Index Count | 1 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 6.35 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 2.2 |
| Item Weight (lbs) | 0.218 |
| Item Height (Inches) | 2.2 |
| Item Length (Inches) | 5.43 |
| Insert Included Angle | 55 |
| Insert Thickness (Inch) | 0.25 |
