Ceratizit

7142401201

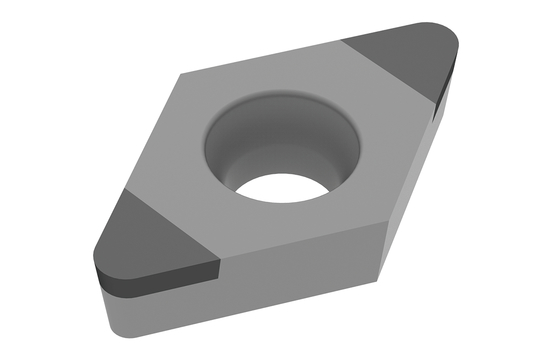

PCBN TURNING INSERT

Specifications

Thickness (Metric)3.97
Corner Radius (Metric)0.4
MaterialPCBN
Included Angle55 degrees
Corner Radius (Inch)0.02
StyleDCGW
Thickness (Inch)0.16
Short DescriptionDCGW 11T304SN-009C_B3 CTBH41C
Long DescriptionPCBN TURNING INSERT DCGW 11T304SN-009C_B3 CTBH41C
GradeCTBH41C
Unit Of MeasureImperial
Cutting Edge Length0.46 Inch
Inscribed Circle Diameter0.38 Inch
Inscribed Circle Diameter (Metric)9.52
Cutting Edge Length (Metric)11.6
Direction Of HandNeutral
Clearance Angle Major7 degrees
Face Land Width (Metric)0.09
Face Land Width (Decimal)0.01
Screw Hole Diameter (Decimal)0.18
Screw Hole Diameter (Metric)4.4
Cutting Edge Effective Length (Metric)3
Cutting Edge Effective Length (Decimal)0.12
Index Count2
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)3.97
Insert HandNEUTRAL
Item Width (Inches)1.57
Item Weight (lbs)0.161
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle55
Insert Thickness (Inch)0.156
