Ceratizit
7.1426104E9

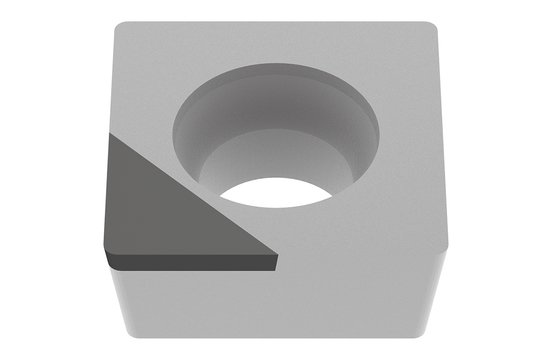

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCBN |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | SCGW |
| Thickness (Inch) | 0.19 |
| Short Description | SCGW 120404FN_A4 CTBS10U |
| Long Description | PCBN TURNING INSERT SCGW 120404FN_A4 CTBS10U |
| Grade | CTBS10U |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.50 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 12.7 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.22 |
| Screw Hole Diameter (Metric) | 5.5 |
| Cutting Edge Effective Length (Metric) | 3.5 |
| Cutting Edge Effective Length (Decimal) | 0.14 |
| Index Count | 1.0 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
