Ceratizit

7146020002

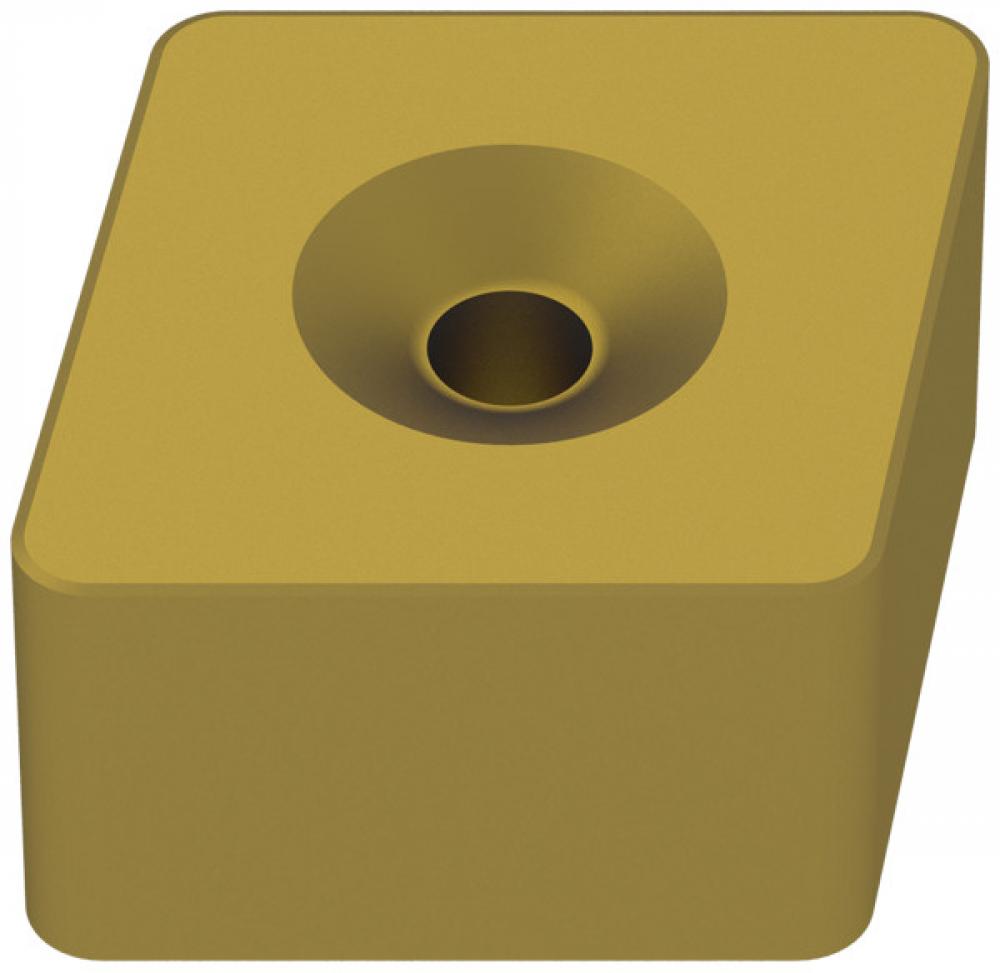

CERAMIC CARBIDE TURNING INSERT COATED

Specifications

Thickness (Metric)7.94
Corner Radius (Metric)1.2
MaterialCeramic Carbide
Included Angle80 degrees
Corner Radius (Inch)0.05
StyleCNGX-C
Thickness (Inch)0.32
Short DescriptionCNGX 120712TN-020D-C CTM3105
Long DescriptionCERAMIC CARBIDE TURNING INSERT COATED CNGX 120712TN-020D-C CTM3105
GradeCTM3105
Unit Of MeasureImperial
Cutting Edge Length0.51 Inch
Inscribed Circle Diameter0.50 Inch
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Metric)12.9
Direction Of HandNeutral
Face Land Width (Metric)0.2
Face Land Width (Decimal)0.01
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)7.94
Insert HandNEUTRAL
Item Width (Inches)2.2
Item Weight (lbs)0.15
Item Height (Inches)2.2
Item Length (Inches)5.43
Insert Included Angle80
Insert Thickness (Inch)0.313
