Ceratizit

7400742901

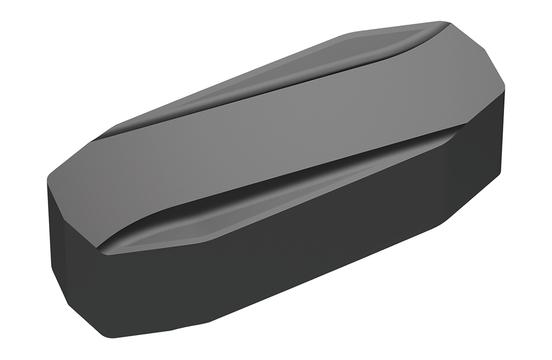

CARBIDE PEELING INSERT

Specifications

Thickness (Metric)12
MaterialCarbide
Included Angle100 degrees
StyleYNUF
Thickness (Inch)0.48
Short DescriptionYNUF 201220S60-M50 CTCP605
Long DescriptionCARBIDE PEELING INSERT YNUF 201220S60-M50 CTCP605
GradeCTCP605
Unit Of MeasureImperial
Length of Cut0.08 Inch
Direction Of HandLeft
Max. Depth Of Cut (Decimal)0.08
Max. Depth Of Cut (Metric)2
Width (Decimal)0.71
Width (Metric)18
Length (Decimal)1.46
Length (Metric)37
Chip Breaker-M50
Face Land Size CodeS60
Face Land Angle6 degrees
Cutting Edge Angle Major20 degrees
Index Count4
Tolerance ClassU
Depth of Cut Maximum (Metric)2
Maximum Depth Of Cut (Inch)0.08
Maximum Depth Of Cut (Metric)2
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_PERFORMANCE
Insert Length (Inch)1.457
Insert Length (Metric)37
Insert Thickness (Metric)12
Insert HandLEFT
Item Width (Inches)3.43
Insert Width (Metric)18
Base MaterialHM
Item Weight (lbs)2.521
Item Height (Inches)3.43
DesignationYNUF 201220S60-M50
Tool Cutting Edge Angle0
Item Length (Inches)4.57
Insert Included Angle100
Insert Thickness (Inch)0.472
