Ceratizit
7400940501

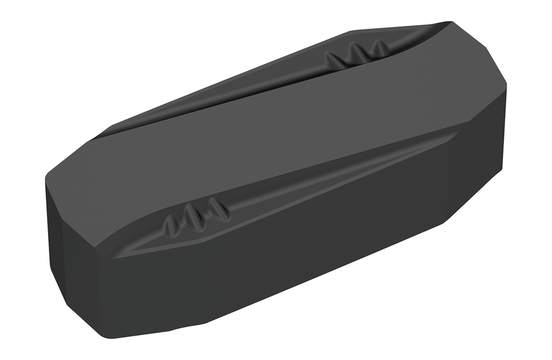

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 8 |
|---|---|
| Material | Carbide |
| Included Angle | 100 degrees |
| Style | YNUF |
| Thickness (Inch) | 0.32 |
| Short Description | YNUF 170820P30-M48 CTCP605 |
| Long Description | CARBIDE PEELING INSERT YNUF 170820P30-M48 CTCP605 |
| Grade | CTCP605 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.06 Inch |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.06 |
| Max. Depth Of Cut (Metric) | 1.5 |
| Width (Decimal) | 0.48 |
| Width (Metric) | 12 |
| Length (Decimal) | 1.22 |
| Length (Metric) | 31 |
| Chip Breaker | -M48 |
| Face Land Size Code | P30 |
| Face Land Angle | 3 degrees |
| Cutting Edge Angle Major | 20 degrees |
| Index Count | 4 |
| Tolerance Class | U |
| Depth of Cut Maximum (Metric) | 1.5 |
| Maximum Depth Of Cut (Inch) | 0.06 |
| Maximum Depth Of Cut (Metric) | 1.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Length (Inch) | 1.22 |
| Insert Length (Metric) | 31 |
| Insert Thickness (Metric) | 8 |
| Insert Hand | LEFT |
| Item Width (Inches) | 3.43 |
| Insert Width (Metric) | 12 |
| Base Material | HM |
| Item Weight (lbs) | 0.948 |
| Item Height (Inches) | 3.43 |
| Designation | YNUF 170820P30-M48 |
| Tool Cutting Edge Angle | 0 |
| Item Length (Inches) | 4.57 |
| Insert Included Angle | 100 |
| Insert Thickness (Inch) | 0.315 |
