Ceratizit

7400940600

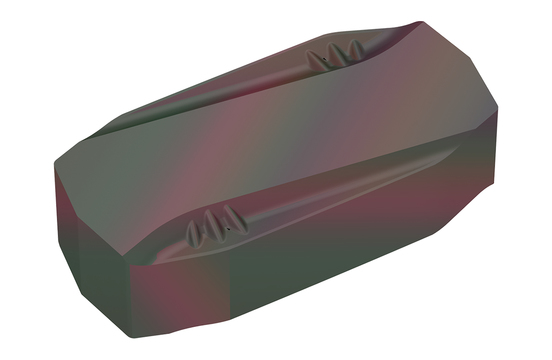

CARBIDE PEELING INSERT

Specifications

Thickness (Metric)8
MaterialCarbide
Included Angle100 degrees
StyleYNUF
Thickness (Inch)0.32
Short DescriptionYNUF 170820S42-M48 CTCP625
Long DescriptionCARBIDE PEELING INSERT YNUF 170820S42-M48 CTCP625
GradeCTCP625
Unit Of MeasureImperial
Length of Cut0.06 Inch
Direction Of HandLeft
Max. Depth Of Cut (Decimal)0.06
Max. Depth Of Cut (Metric)1.5
Width (Decimal)0.48
Width (Metric)12
Length (Decimal)1.22
Length (Metric)31
Chip Breaker-M48
Face Land Size CodeS42
Face Land Angle4 degrees
Cutting Edge Angle Major20 degrees
Index Count4
Tolerance ClassU
Depth of Cut Maximum (Metric)1.5
Maximum Depth Of Cut (Inch)0.06
Maximum Depth Of Cut (Metric)1.5
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_PERFORMANCE
Insert Length (Inch)1.22
Insert Length (Metric)31
Insert Thickness (Metric)8
Insert HandLEFT
Item Width (Inches)3.43
Insert Width (Metric)12
Base MaterialHM
Item Weight (lbs)0.891
Item Height (Inches)3.43
DesignationYNUF 170820S42-M48
Tool Cutting Edge Angle0
Item Length (Inches)4.57
Insert Included Angle100
Insert Thickness (Inch)0.315
