Ceratizit

7406340100

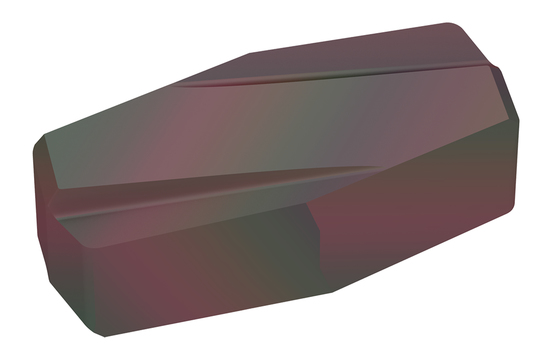

CARBIDE PEELING INSERT

Specifications

Thickness (Metric)6
MaterialCarbide
Included Angle100 degrees
StyleYNUX
Thickness (Inch)0.24
Short DescriptionYNUX 100615S50-M50 CTCP625
Long DescriptionCARBIDE PEELING INSERT YNUX 100615S50-M50 CTCP625
GradeCTCP625
Unit Of MeasureImperial
Length of Cut0.08 Inch
Direction Of HandLeft
Max. Depth Of Cut (Decimal)0.08
Max. Depth Of Cut (Metric)2
Width (Decimal)0.4
Width (Metric)10
Length (Decimal)0.87
Length (Metric)22
Chip Breaker-M50
Face Land Size CodeS50
Cutting Edge Angle Major15 degrees
Index Count4
Tolerance ClassU
Depth of Cut Maximum (Metric)2
Maximum Depth Of Cut (Inch)0.08
Maximum Depth Of Cut (Metric)2
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_PERFORMANCE
Insert Length (Inch)0.866
Insert Length (Metric)22
Insert Thickness (Metric)6
Insert HandLEFT
Item Width (Inches)2.2
Insert Width (Metric)10
Base MaterialHM
Item Weight (lbs)0.409
Item Height (Inches)2.2
DesignationYNUX 100615S50-M50
Tool Cutting Edge Angle0
Item Length (Inches)5.43
Insert Included Angle100
Insert Thickness (Inch)0.236
