Ceratizit
7420630300

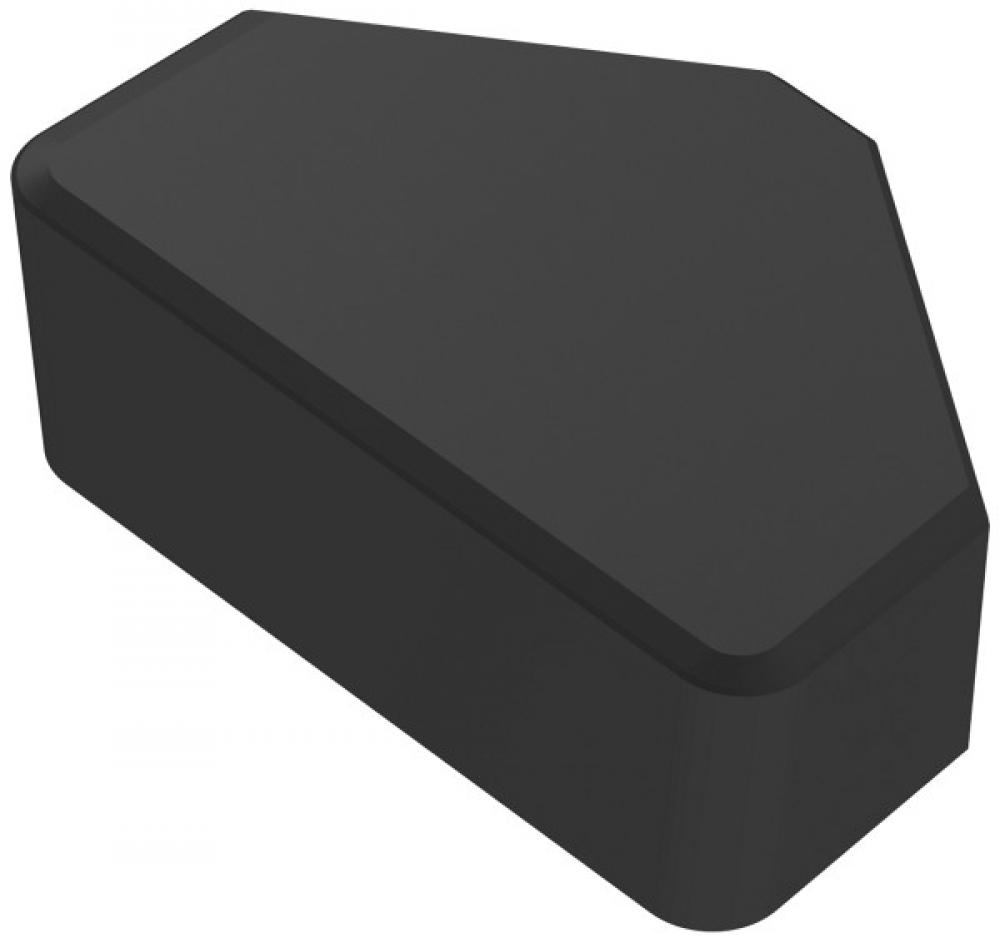

SILICONNITRATE GROOVING INSERT
Specifications
| Corner Radius (Metric) | 1.2 |
|---|---|
| Material | HM |
| Corner Radius (Inch) | 0.05 |
| Short Description | HX 16.12.65PN-025CE CTN3110 |
| Long Description | SILICONNITRATE GROOVING INSERT HX 16.12.65PN-025CE CTN3110 |
| Grade | CTN3110 |
| Unit Of Measure | Imperial |
| Direction Of Hand | Neutral |
| Width (Decimal) | 0.48 |
| Width (Metric) | 12 |
| Length (Decimal) | 0.67 |
| Length (Metric) | 17 |
| Cutting Width (Decimal) | 0.63 |
| Cutting Width (Metric) | 16 |
| Screw Hole Diameter (Decimal) | 0.26 |
| Screw Hole Diameter (Metric) | 6.5 |
| Relief Angle | 3 degrees |
| Alpha Angle | 110 degrees |
| Base Item Number | HX |
| Cutting Width (Inch) | 0.63 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Insert Length (Inch) | 0.669 |
| Insert Length (Metric) | 17 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 3.43 |
| Base Material | HM |
| Item Weight (lbs) | 0.306 |
| Item Height (Inches) | 3.43 |
| Designation | HX 16.12.65 PN |
| Tool Cutting Edge Angle | 0 |
| Item Length (Inches) | 4.57 |
