Ceratizit
7500962000

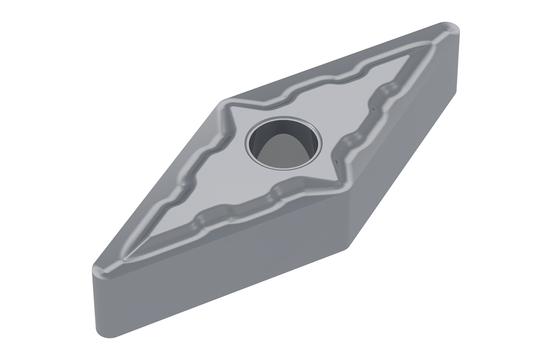

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | Carbide |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | VNMG |
| Thickness (Inch) | 0.19 |
| Short Description | VNMG 160412EN-M34 CTPX710 |
| Long Description | CARBIDE TURNING INSERT VNMG 160412EN-M34 CTPX710 |
| Grade | CTPX710 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.66 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 16.6 |
| Direction Of Hand | Neutral |
| Chip Breaker | -M34 |
| Screw Hole Diameter (Decimal) | 0.15 |
| Screw Hole Diameter (Metric) | 3.81 |
| Rake Angle | 15 degrees |
| Tolerance Class | M |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | NEUTRAL |
| Insert Rake Angle | 15 |
| Item Width (Inches) | 2.2 |
| Base Material | HM |
| Item Weight (lbs) | 0.278 |
| Item Height (Inches) | 2.2 |
| Item Length (Inches) | 5.43 |
| Insert Included Angle | 35 |
| Insert Thickness (Inch) | 0.187 |
