Ceratizit
75012232

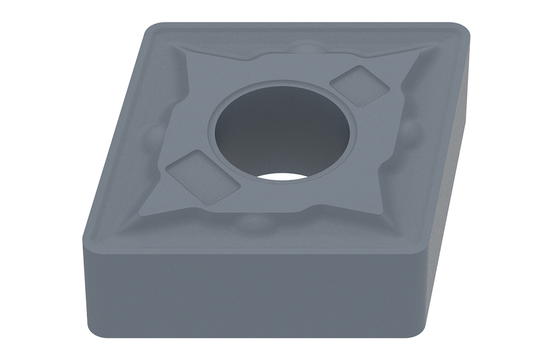

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | CNMG |
| Thickness (Inch) | 0.19 |
| Short Description | CNMG 120412EN-M60 CTPM125 |
| Long Description | CARBIDE TURNING INSERT CNMG 120412EN-M60 CTPM125 |
| Grade | CTPM125 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 12.90 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Decimal) | 0.51 |
| Cutting Edge Length (Metric) | 12.9 |
| Direction Of Hand | Neutral |
| Chip Breaker | -M60 |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Rake Angle | 18 degrees |
| Tolerance Class | M |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | NEUTRAL |
| Insert Rake Angle | 18 |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.25 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 80 |
| Insert Thickness (Inch) | 0.187 |
