IBC Member Market

Ceratizit

7530002809

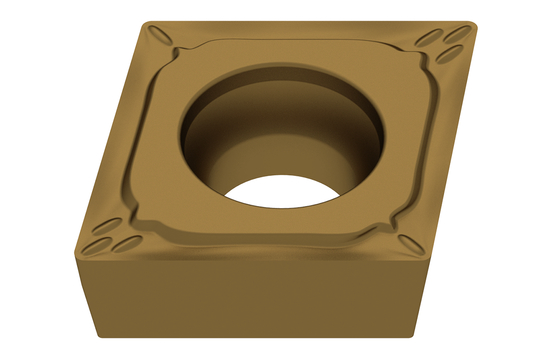

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.4
MaterialCarbide
Included Angle80 degrees
Corner Radius (Inch)0.02
StyleCCMT
Thickness (Inch)0.19
Short DescriptionCCMT 120404EN-FMS CT-P15
Long DescriptionCARBIDE TURNING INSERT CCMT 120404EN-FMS CT-P15
GradeCT-P15
Unit Of MeasureImperial
Cutting Edge Length0.51 Inch
Inscribed Circle Diameter0.50 Inch
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Metric)12.9
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-FMS
Screw Hole Diameter (Decimal)0.22
Screw Hole Diameter (Metric)5.5
Rake Angle15 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_STANDARD
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle15
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.212
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.187
