Ceratizit
7530304409

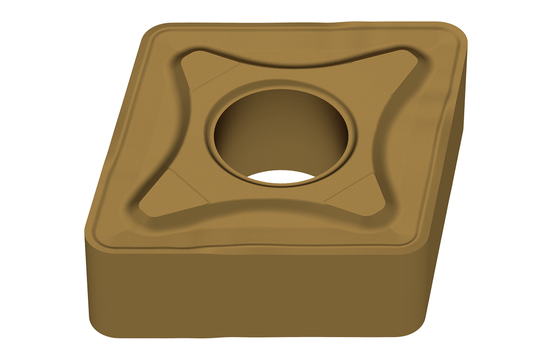

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | CNMG |
| Thickness (Inch) | 0.25 |
| Short Description | CNMG 160612EN-MRS CT-P15 |
| Long Description | CARBIDE TURNING INSERT CNMG 160612EN-MRS CT-P15 |
| Grade | CT-P15 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.64 Inch |
| Inscribed Circle Diameter | 0.63 Inch |
| Inscribed Circle Diameter (Metric) | 15.87 |
| Cutting Edge Length (Metric) | 16.1 |
| Direction Of Hand | Neutral |
| Chip Breaker | -MRS |
| Screw Hole Diameter (Decimal) | 0.25 |
| Screw Hole Diameter (Metric) | 6.35 |
| Rake Angle | 15.70 degrees |
| Tolerance Class | M |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_STANDARD |
| Insert Thickness (Metric) | 6.35 |
| Insert Hand | NEUTRAL |
| Insert Rake Angle | 15.7 |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.468 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 80 |
| Insert Thickness (Inch) | 0.25 |
