Ceratizit

7530601609

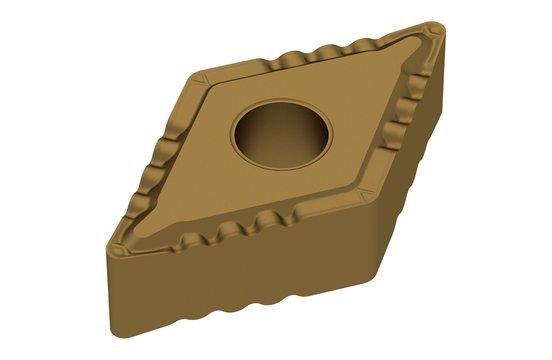

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.4
MaterialCarbide
Included Angle55 degrees
Corner Radius (Inch)0.02
StyleDNMG
Thickness (Inch)0.19
Short DescriptionDNMG 150404EN-FMS CT-P15
Long DescriptionCARBIDE TURNING INSERT DNMG 150404EN-FMS CT-P15
GradeCT-P15
Unit Of MeasureImperial
Cutting Edge Length0.61 Inch
Inscribed Circle Diameter0.50 Inch
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Metric)15.5
Direction Of HandNeutral
Chip Breaker-FMS
Screw Hole Diameter (Decimal)0.21
Screw Hole Diameter (Metric)5.16
Rake Angle20 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_STANDARD
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle20
Item Width (Inches)2.2
Base MaterialHM
Item Weight (lbs)0.319
Item Height (Inches)2.2
Item Length (Inches)5.43
Insert Included Angle55
Insert Thickness (Inch)0.187
