Ceratizit

7531201809

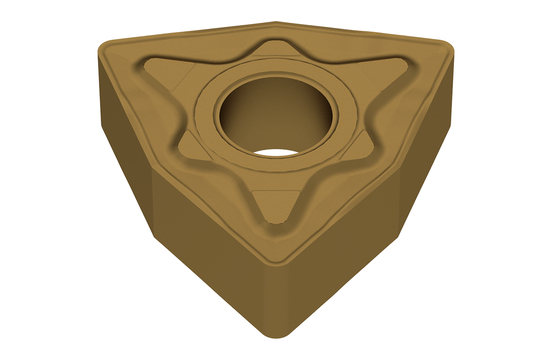

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.8
MaterialCarbide
Included Angle80 degrees
Corner Radius (Inch)0.04
StyleWNMG
Thickness (Inch)0.19
Short DescriptionWNMG 080408EN-MRS CT-P15
Long DescriptionCARBIDE TURNING INSERT WNMG 080408EN-MRS CT-P15
GradeCT-P15
Unit Of MeasureImperial
Cutting Edge Length0.34 Inch
Inscribed Circle Diameter0.50 Inch
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Metric)8.6
Direction Of HandNeutral
Chip Breaker-MRS
Screw Hole Diameter (Decimal)0.21
Screw Hole Diameter (Metric)5.16
Rake Angle10 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineCERATIZIT_STANDARD
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle10
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.239
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.187
