Ceratizit

76110030

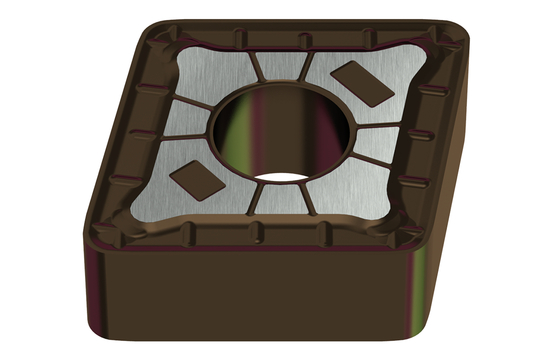

CERMET TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.8
MaterialCERMET
Included Angle80 degrees
Corner Radius (Inch)0.04
StyleCNMG
Thickness (Inch)0.19
Short DescriptionCNMG 120408EN-TFQ CTEP110
Long DescriptionCERMET TURNING INSERT CNMG 120408EN-TFQ CTEP110
GradeCTEP110
Unit Of MeasureMetric
Cutting Edge Length12.90 mm
Inscribed Circle Diameter12.70 mm
Inscribed Circle Diameter (Decimal)0.5
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Decimal)0.51
Cutting Edge Length (Metric)12.9
Direction Of HandNeutral
Chip Breaker-TFQ
Screw Hole Diameter (Decimal)0.21
Screw Hole Diameter (Metric)5.16
Rake Angle17 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle17
Item Width (Inches)1.57
Base MaterialCERMET
Item Weight (lbs)0.124
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.187
