Ceratizit

76149018

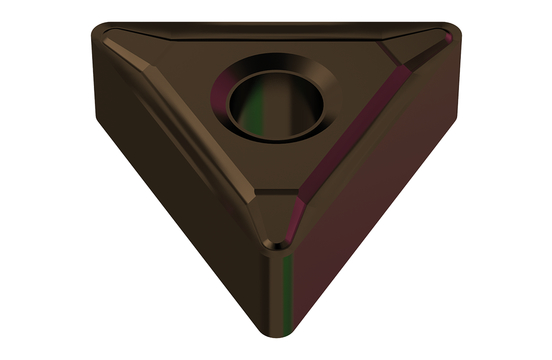

CERMET TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.8
MaterialCERMET
Included Angle60 degrees
Corner Radius (Inch)0.04
StyleTNMG
Thickness (Inch)0.19
Short DescriptionTNMG 160408EN-CF20 CTEP110
Long DescriptionCERMET TURNING INSERT TNMG 160408EN-CF20 CTEP110
GradeCTEP110
Unit Of MeasureMetric
Cutting Edge Length16.50 mm
Inscribed Circle Diameter9.52 mm
Inscribed Circle Diameter (Decimal)0.38
Inscribed Circle Diameter (Metric)9.52
Cutting Edge Length (Decimal)0.65
Cutting Edge Length (Metric)16.5
Direction Of HandNeutral
Chip Breaker-CF20
Screw Hole Diameter (Decimal)0.15
Screw Hole Diameter (Metric)3.81
Rake Angle12 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle12
Item Width (Inches)1.57
Base MaterialCERMET
Item Weight (lbs)0.098
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle60
Insert Thickness (Inch)0.187
