IBC Member Market

Ceratizit

76228708

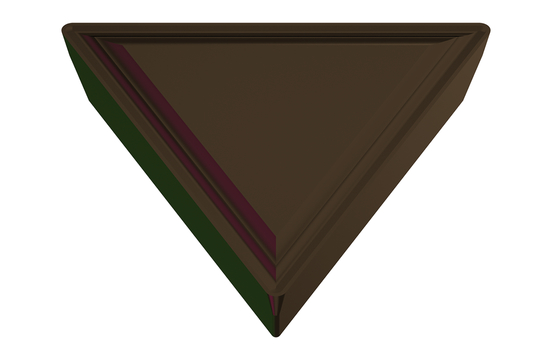

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)3.18
Corner Radius (Metric)0.8
MaterialCarbide
Included Angle60 degrees
Corner Radius (Inch)0.04
StyleTPMR
Thickness (Inch)0.13
Short DescriptionTPMR 160308EN CTCP135
Long DescriptionCARBIDE TURNING INSERT TPMR 160308EN CTCP135
GradeCTCP135
Unit Of MeasureMetric
Cutting Edge Length16.50 mm
Inscribed Circle Diameter9.52 mm
Inscribed Circle Diameter (Decimal)0.38
Inscribed Circle Diameter (Metric)9.52
Cutting Edge Length (Decimal)0.65
Cutting Edge Length (Metric)16.5
Direction Of HandNeutral
Clearance Angle Major11 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)3.18
Insert HandNEUTRAL
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.126
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle60
Insert Thickness (Inch)0.125
