Ceratizit

76247002

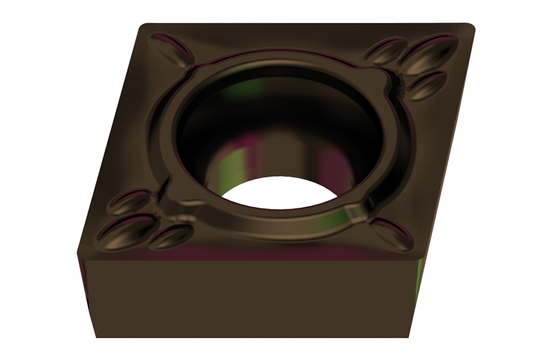

CERMET TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.2
MaterialCERMET
Included Angle80 degrees
Corner Radius (Inch)0.01
StyleCCGT
Thickness (Inch)0.1
Short DescriptionCCGT 060202EN-CF05 CTEP110
Long DescriptionCERMET TURNING INSERT CCGT 060202EN-CF05 CTEP110
GradeCTEP110
Unit Of MeasureMetric
Cutting Edge Length6.40 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.26
Cutting Edge Length (Metric)6.4
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-CF05
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Rake Angle15 degrees
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Insert Rake Angle15
Item Width (Inches)1.57
Base MaterialCERMET
Item Weight (lbs)0.038
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.094
