Ceratizit

76248028

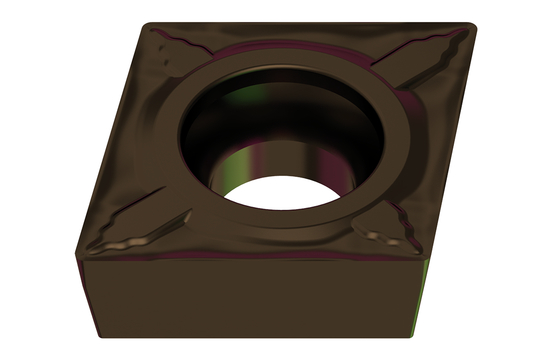

CERMET TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.4
MaterialCERMET
Included Angle80 degrees
Corner Radius (Inch)0.02
StyleCCMT
Thickness (Inch)0.19
Short DescriptionCCMT 120404EN-CF55 CTEP110
Long DescriptionCERMET TURNING INSERT CCMT 120404EN-CF55 CTEP110
GradeCTEP110
Unit Of MeasureMetric
Cutting Edge Length12.90 mm
Inscribed Circle Diameter12.70 mm
Inscribed Circle Diameter (Decimal)0.5
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Decimal)0.51
Cutting Edge Length (Metric)12.9
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-CF55
Screw Hole Diameter (Decimal)0.22
Screw Hole Diameter (Metric)5.5
Rake Angle13 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle13
Item Width (Inches)1.57
Base MaterialCERMET
Item Weight (lbs)0.11
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.187
