Ceratizit
7851201698

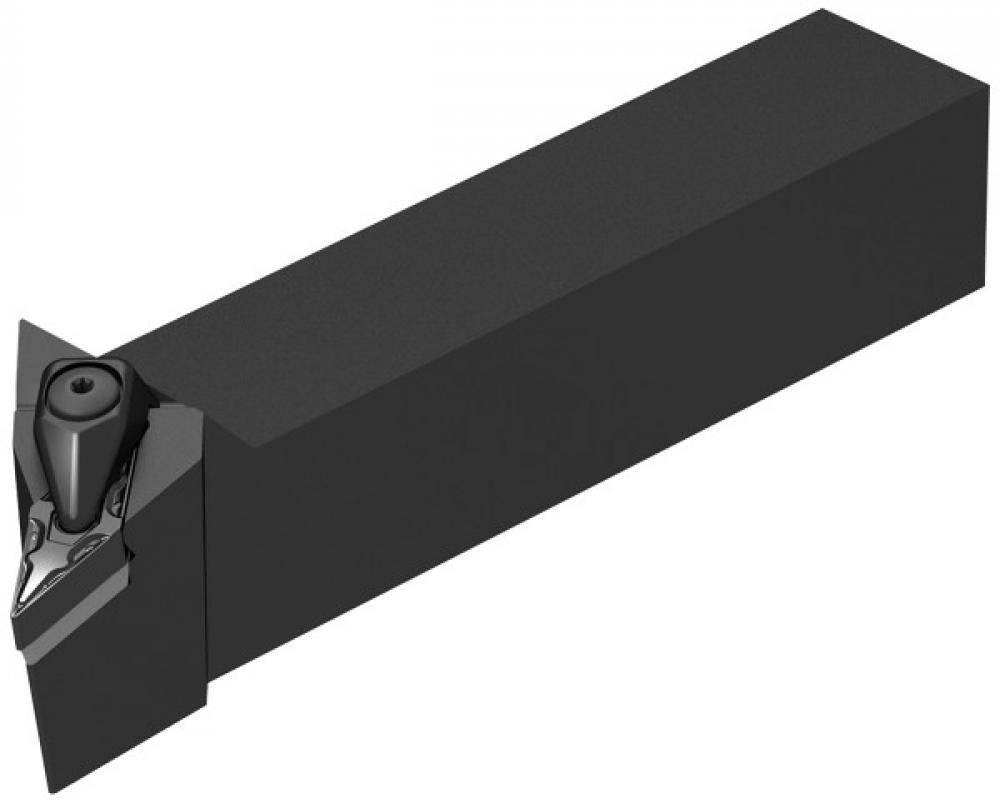

MAXILOCK D TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DVJNR |
| Overall Length (Inch) | 6 |
| Short Description | DVJNR 16-3DA-N |
| Long Description | MAXILOCK D TOOLHOLDER DVJNR 16-3DA-N |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Functional Width (Decimal) | 1.25 |
| Functional Width (Metric) | 31.75 |
| Head Length (Decimal) | 1.75 |
| Head Length (Metric) | 44.45 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 44.45 |
| Reduced Body Diameter Length (Decimal) | 1.75 |
| Holder Form | DVJN93 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.97 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 0.063 |
| Item Height (Inches) | 4.8 |
| Item Length (Inches) | 1.97 |
| Head Length (Inch) | 1.75 |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
