Ceratizit
7852802486

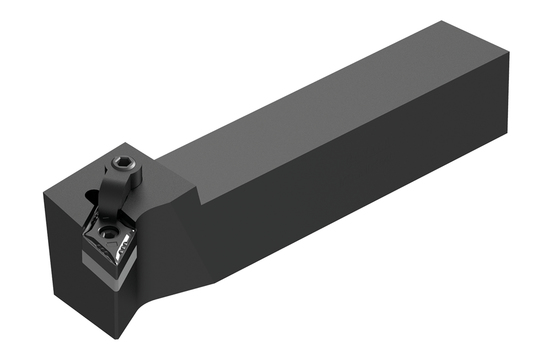

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 177.8 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MDQNR |
| Overall Length (Inch) | 7 |
| Short Description | MDQNR 24-4E |
| Long Description | MAXILOCK M TOOLHOLDER MDQNR 24-4E |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.50 Inch |
| Shank Width (Metric) | 38.1 |
| Shank Height (Metric) | 38.1 |
| Functional Width (Decimal) | 2 |
| Functional Width (Metric) | 50.8 |
| Head Length (Decimal) | 1.37 |
| Head Length (Metric) | 34.8 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 34.8 |
| Reduced Body Diameter Length (Decimal) | 1.37 |
| Holder Form | MDQN107,5 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 2.8 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 0.227 |
| Item Height (Inches) | 2.8 |
| Item Length (Inches) | 9.92 |
| Head Length (Inch) | 1.37 |
| Shank Width (Inch) | 1.5 |
| Shank Height (Inch) | 1.5 |
