Ceratizit
7853708656

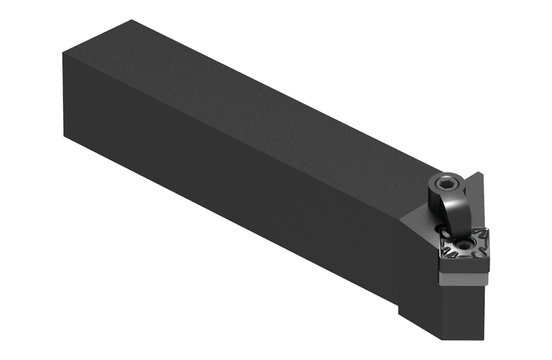

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 177.8 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MSSNL |
| Overall Length (Inch) | 7 |
| Short Description | MSSNL 86-6E |
| Long Description | MAXILOCK M TOOLHOLDER MSSNL 86-6E |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 38.1 |
| Functional Width (Decimal) | 0.77 |
| Functional Width (Metric) | 19.33 |
| Head Length (Decimal) | 1.47 |
| Head Length (Metric) | 37.34 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 37.34 |
| Reduced Body Diameter Length (Decimal) | 1.47 |
| Holder Form | MSSN45 |
| Cutting Direction | LEFT |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.93 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 0.086 |
| Item Height (Inches) | 5 |
| Item Length (Inches) | 1.93 |
| Head Length (Inch) | 1.47 |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1.5 |
