Ceratizit
7870742424

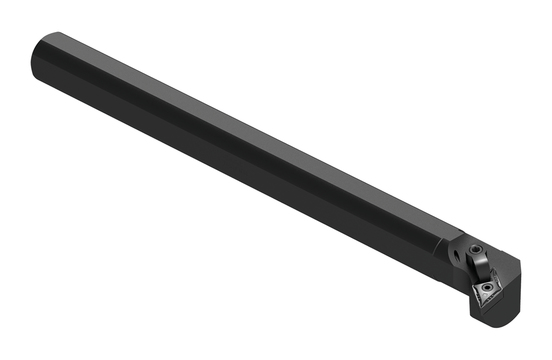

BORING BAR
Specifications
| Cutting Direction | LEFT |
|---|---|
| Minimum Bore Diameter (Metric) | 57.15 |
| Minimum Bore Diameter (Inch) | 2.25 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 355.6 |
| Overall Length (Inch) | 14 |
| Short Description | A24U MDUNL |
| Unit Of Measure | Imperial |
| Material | Steel |
| Long Description | BORING BAR A24U MDUNL |
| Series | MaxiLock-M |
| Shank Height (Metric) | 34.8 |
| Connection Diameter (Decimal) | 1.5 |
| Connection Diameter (Metric) | 38.1 |
| Functional Width (Decimal) | 1.13 |
| Functional Width (Metric) | 28.58 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Decimal) | 3 |
| Reduced Body Diameter Length (Metric) | 76.2 |
| Holder Form | MDUL93 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
