Ceratizit
8231032568

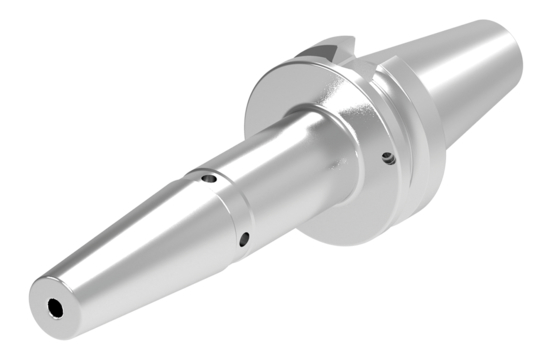

SHRINK FIT ADAPTER
Specifications
| Height | 4.61 |
|---|---|
| Width | 4.61 |
| Weight | 11.709 |
| Base Item Number | TYP_TG |
| Body Diameter (Inch) | 2.087 |
| Body Diameter (Metric) | 53 |
| Brand Name | WNT |
| Cooling | ADB |
| Length | 11.81 |
| Long Description | SHRINK FIT ADAPTER MAS-BT-ADB50-SA-4,5°-25-160-F |
| Recording | BT 50 |
| Short Description | MAS-BT-ADB50-SA-4,5°-25-160-F |
| Product Line | WNT_STANDARD |
| Body Diameter (mm) | 53 |
| Connection Diameter Workpiece Side (Metric) | 25 |
| Item Width (Inches) | 4.61 |
| thread designation inside | M16x1 |
| Overall Length (mm) | 26.18 cm |
| Item Weight (lbs) | 11.709 |
| Item Height (Inches) | 4.61 |
| Protruding Length (Metric) | 160 |
| Item Length (Inches) | 11.81 |
| Version | EXTRA LONG |
| Overall Length (Inch) | 10.307 |
