Ceratizit
8274113255

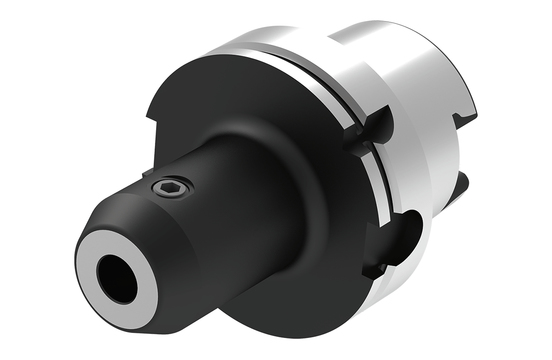

HSK-A TO CYLINDRICAL SHANK ADAPTER (WELDON)
Specifications
| Overall Length (Inch) | 5.906 |
|---|---|
| Long Description | HSK-A TO CYLINDRICAL SHANK ADAPTER (WELDON) ISO12164-A100.WE.32.100.F |
| Short Description | ISO12164-A100.WE.32.100.F |
| Product Line | WNT_STANDARD |
| Body Diameter (mm) | 72 |
| Connection Diameter Workpiece Side (Metric) | 32 |
| Item Width (Inches) | 4.57 |
| Overall Length (mm) | 15 cm |
| Item Weight (lbs) | 8.781 |
| Item Height (Inches) | 4.57 |
| Protruding Length (Metric) | 100 |
| Item Length (Inches) | 6.5 |
| Recording | HSK-A 100 |
| Body Length (Metric) | 71 |
| Version | SHORT |
| Body Length (Inch) | 2.795 |
| Body Diameter (Inch) | 2.835 |
| Cooling | AD |
