Ceratizit
83454208

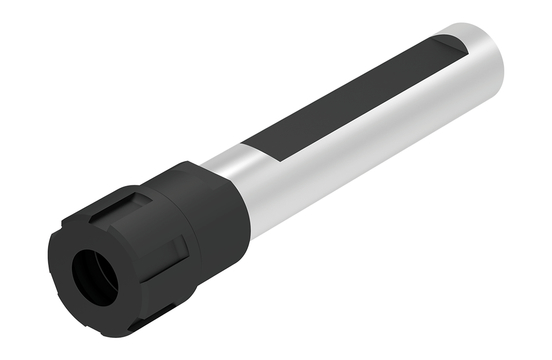

CYLINDRICAL SHANK ER COLLET CHUCK WITH MINI CLAMPING NUT
Specifications
| Long Description | CYLINDRICAL SHANK ER COLLET CHUCK WITH MINI CLAMPING NUT DIN6499-AD20.SF.ER25.146 |
|---|---|
| Short Description | DIN6499-AD20.SF.ER25.146 |
| Product Line | WNT_STANDARD |
| Connection diameter machine side (inch) | 0.787 |
| Item Width (Inches) | 1.69 |
| thread designation inside | M14x1 |
| Overall Length (mm) | 14.6 cm |
| Connection diameter machine side tolerance | h6 |
| Item Weight (lbs) | 0.808 |
| Item Height (Inches) | 1.69 |
| Protruding Length (Metric) | 46 |
| Drive Size (Metric) | 27 |
| Item Length (Inches) | 5.91 |
| Functional Diameter (Metric) | 25 |
| Thread Diameter (mm) | 30 |
| Cooling | AD |
| Overall Length (Inch) | 5.748 |
