Ceratizit
84100620

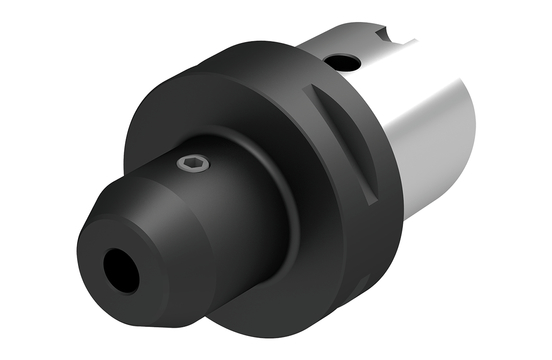

PSC TO CYLINDRICAL SHANK ADAPTER (WELDON)
Specifications
| Overall Length (Inch) | 4.055 |
|---|---|
| Long Description | PSC TO CYLINDRICAL SHANK ADAPTER (WELDON) ISO26623-1.PSC63.WE.20.65.V.IK |
| Short Description | ISO26623-1.PSC63.WE.20.65.V.IK |
| Product Line | WNT_STANDARD |
| Body Diameter (mm) | 52 |
| Connection diameter machine side (inch) | 1.732 |
| Connection Diameter Workpiece Side (Metric) | 20 |
| Flange Diameter (Inch) | 2.48 |
| Item Width (Inches) | 2.95 |
| Overall Length (mm) | 10.3 cm |
| Item Weight (lbs) | 3.197 |
| Item Height (Inches) | 2.95 |
| Protruding Length (Metric) | 65 |
| Flange Diameter (Metric) | 63 |
| Item Length (Inches) | 4.25 |
| Recording | PSC 63 |
| Body Length (Metric) | 43 |
| Body Length (Inch) | 1.693 |
| Body Diameter (Inch) | 2.047 |
| Cooling | AD |
