Ceratizit
84100832

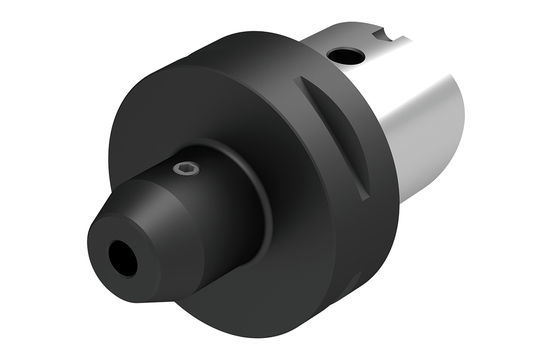

PSC TO CYLINDRICAL SHANK ADAPTER (WELDON)
Specifications
| Overall Length (Inch) | 5.039 |
|---|---|
| Long Description | PSC TO CYLINDRICAL SHANK ADAPTER (WELDON) ISO26623-1.PSC80.WE.32.80.V.IK |
| Short Description | ISO26623-1.PSC80.WE.32.80.V.IK |
| Product Line | WNT_STANDARD |
| Body Diameter (mm) | 72 |
| Connection diameter machine side (inch) | 2.165 |
| Connection Diameter Workpiece Side (Metric) | 32 |
| Flange Diameter (Inch) | 3.15 |
| Item Width (Inches) | 3.86 |
| Overall Length (mm) | 12.8 cm |
| Item Weight (lbs) | 6.919 |
| Item Height (Inches) | 3.86 |
| Protruding Length (Metric) | 80 |
| Flange Diameter (Metric) | 80 |
| Item Length (Inches) | 5.24 |
| Recording | PSC 80 |
| Body Length (Metric) | 50 |
| Body Length (Inch) | 1.969 |
| Body Diameter (Inch) | 2.835 |
| Cooling | AD |
