Ceratizit
84102410

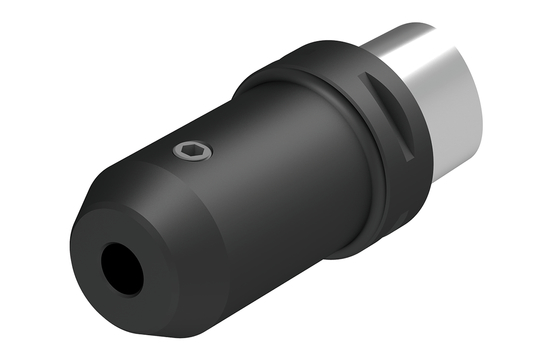

CYLINDRICAL SHANK ADAPTER WHISTLE NOTCH
Specifications
| Overall Length (Inch) | 3.701 |
|---|---|
| Long Description | CYLINDRICAL SHANK ADAPTER WHISTLE NOTCH ISO26623-1.PSC40.WN.10.70.V.IK |
| Short Description | ISO26623-1.PSC40.WN.10.70.V.IK |
| Product Line | WNT_STANDARD |
| Body Diameter (mm) | 35 |
| Connection diameter machine side (inch) | 1.102 |
| Connection Diameter Workpiece Side (Metric) | 10 |
| Flange Diameter (Inch) | 1.575 |
| Item Width (Inches) | 2.13 |
| thread designation inside | M8 |
| Overall Length (mm) | 9.4 cm |
| Item Weight (lbs) | 1.464 |
| Item Height (Inches) | 2.13 |
| Protruding Length (Metric) | 70 |
| Flange Diameter (Metric) | 40 |
| Item Length (Inches) | 3.9 |
| Recording | PSC 40 |
| Body Length (Metric) | 50 |
| Body Length (Inch) | 1.969 |
| Body Diameter (Inch) | 1.378 |
| Cooling | AD |
