Ceratizit
84102832

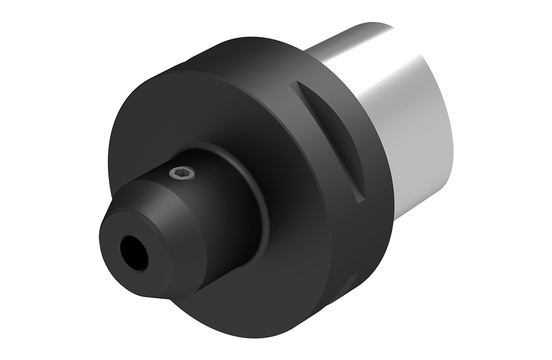

CYLINDRICAL SHANK ADAPTER WHISTLE NOTCH
Specifications
| Overall Length (Inch) | 5.63 |
|---|---|
| Long Description | CYLINDRICAL SHANK ADAPTER WHISTLE NOTCH ISO26623-1.PSC80.WN.32.95.V.IK |
| Short Description | ISO26623-1.PSC80.WN.32.95.V.IK |
| Product Line | WNT_STANDARD |
| Body Diameter (mm) | 72 |
| Connection diameter machine side (inch) | 2.165 |
| Connection Diameter Workpiece Side (Metric) | 32 |
| Flange Diameter (Inch) | 3.15 |
| Item Width (Inches) | 3.86 |
| thread designation inside | M16 |
| Overall Length (mm) | 14.3 cm |
| Item Weight (lbs) | 8.003 |
| Item Height (Inches) | 3.86 |
| Protruding Length (Metric) | 95 |
| Flange Diameter (Metric) | 80 |
| Item Length (Inches) | 5.83 |
| Recording | PSC 80 |
| Body Length (Metric) | 65 |
| Body Length (Inch) | 2.559 |
| Body Diameter (Inch) | 2.835 |
| Cooling | AD |
