Ceratizit
84104814

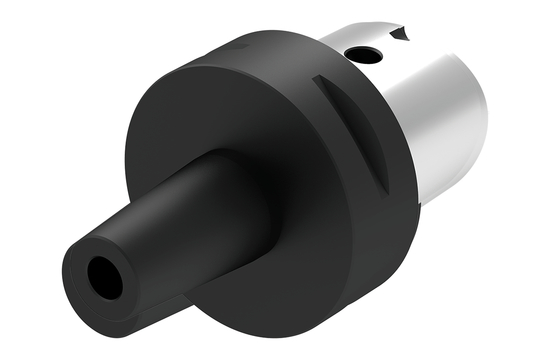

SHRINK FIT ADAPTER
Specifications
| Body Diameter (Inch) | 1.339 |
|---|---|
| Cooling | AD |
| Long Description | SHRINK FIT ADAPTER ISO26623-1.PSC80.SA.14.90.V.IK |
| Recording | PSC 80 |
| Short Description | ISO26623-1.PSC80.SA.14.90.V.IK |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 34 |
| Connection diameter machine side (inch) | 2.165 |
| Connection Diameter Workpiece Side (Metric) | 14 |
| Flange Diameter (Inch) | 3.15 |
| Item Width (Inches) | 3.86 |
| thread designation inside | M10x1 |
| Overall Length (mm) | 13.8 cm |
| Item Weight (lbs) | 6.122 |
| Item Height (Inches) | 3.86 |
| Protruding Length (Metric) | 90 |
| Flange Diameter (Metric) | 80 |
| Item Length (Inches) | 5.63 |
| Body Length (Metric) | 60 |
| Version | SHORT |
| Body Length (Inch) | 2.362 |
| Overall Length (Inch) | 5.433 |
