Ceratizit
84105816

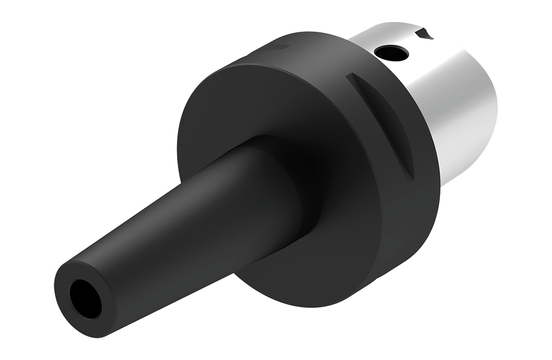

SHRINK FIT ADAPTER
Specifications
| Body Diameter (Inch) | 1.417 |
|---|---|
| Cooling | AD |
| Long Description | SHRINK FIT ADAPTER ISO26623-1.PSC80.SA.16.120.V.IK |
| Recording | PSC 80 |
| Short Description | ISO26623-1.PSC80.SA.16.120.V.IK |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 36 |
| Connection diameter machine side (inch) | 2.165 |
| Connection Diameter Workpiece Side (Metric) | 16 |
| Flange Diameter (Inch) | 3.15 |
| Item Width (Inches) | 3.86 |
| thread designation inside | M12x1 |
| Overall Length (mm) | 16.8 cm |
| Item Weight (lbs) | 5.631 |
| Item Height (Inches) | 3.86 |
| Protruding Length (Metric) | 120 |
| Flange Diameter (Metric) | 80 |
| Item Length (Inches) | 6.81 |
| Body Length (Metric) | 90 |
| Version | MEDIUM LONG |
| Body Length (Inch) | 3.543 |
| Overall Length (Inch) | 6.614 |
